UAV Data Link Products

01/05

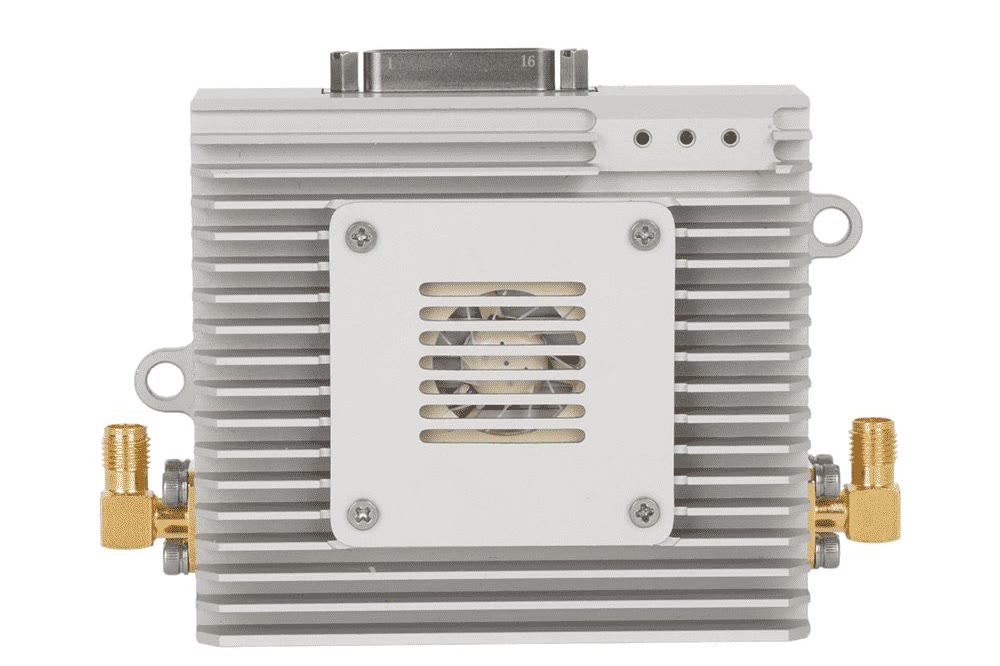

Airborne Data Link

Full-interface modules for the airframe — range, weight and power in every class.

15models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands
VW-J30-15J30 · Air	15km	30Mbps	150ms	2.4GHz, 1.4GHz, 800MHz
VW-MICRO-15Micro · Air	15km	30Mbps	150ms	2.4GHz, 1.4GHz, 800MHz
VW-STD-15Standard · Air	15km	30Mbps	150ms	2.4GHz, 1.4GHz, 800MHz
VW-FH-15Frequency hopping · Air	15km	30Mbps	150ms	1.4GHz-1.5GHz
VW-J30-50J30 · Air	50km	30Mbps	150ms	2.4GHz, 1.4GHz, 800MHz
VW-STD-50Standard · Air	50km	30Mbps	150ms	1.4GHz, 800MHz
VW-FH-30Frequency hopping · Air	30km	24Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz
VW-FH-50Frequency hopping · Air	50km	24Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz
VW-FH-50PFrequency hopping · Air	50km	40Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz
VW-J30-80J30 · Air	80km	30Mbps	150ms	1.4GHz, 800MHz
VW-FH-100Frequency hopping · Air	100km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz
VW-J30-150J30 · Air	150km	30Mbps	150ms	1.4GHz, 800MHz
VW-J30-150PJ30 · Air	150km	30Mbps	150ms	1.4GHz, 800MHz
VW-FH-200Frequency hopping · Air	200km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz
VW-FH-300Frequency hopping · Air	300km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz

02/05

Self-forming IP networks — 10 to 300 km per hop, up to 64 nodes.

7models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands	Nodes
VW-MESH-10Mesh · Air	10km	30Mbps	150ms	1.4-1.5GHz	up to 32
VW-MESH-30Mesh · Air	30km	40Mbps	150ms	1350-1450MHz (customizable)	—
VW-MESH-50Mesh · Air	50km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64
VW-DUAL-100Mesh · Air	100km	34Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	—
VW-MESH-100Mesh · Air	100km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64
VW-MESH-200Mesh · Air	200km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64
VW-MESH-300Mesh · Air	300km	47Mbps	150ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64

03/05

High-bitrate COFDM video from camera to ground, on one link.

3models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands

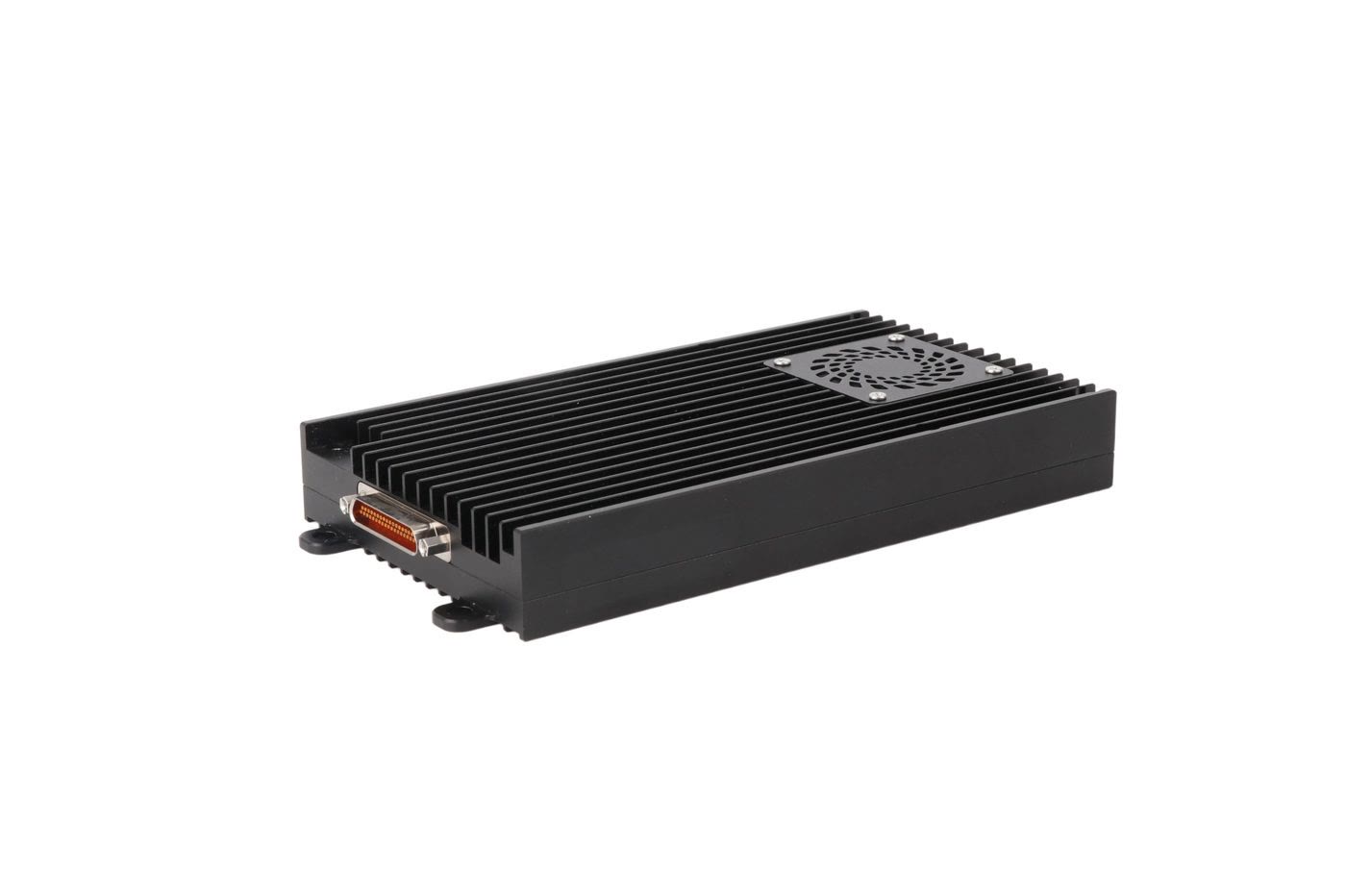

VW-4K-204KHD · Air	20km	80Mbps	150ms	1.4GHz-1.5GHz
VW-4K-504KHD · Air	50km	80Mbps	150ms	1.4GHz-1.5GHz
VW-4K-1504KHD · Air	150km	80Mbps	150ms	1.4GHz-1.5GHz

04/05

Tracking ground stations that pair with the airborne units.

3models

Model	Interfaces	Supply voltage	Ingress protection	Dimensions

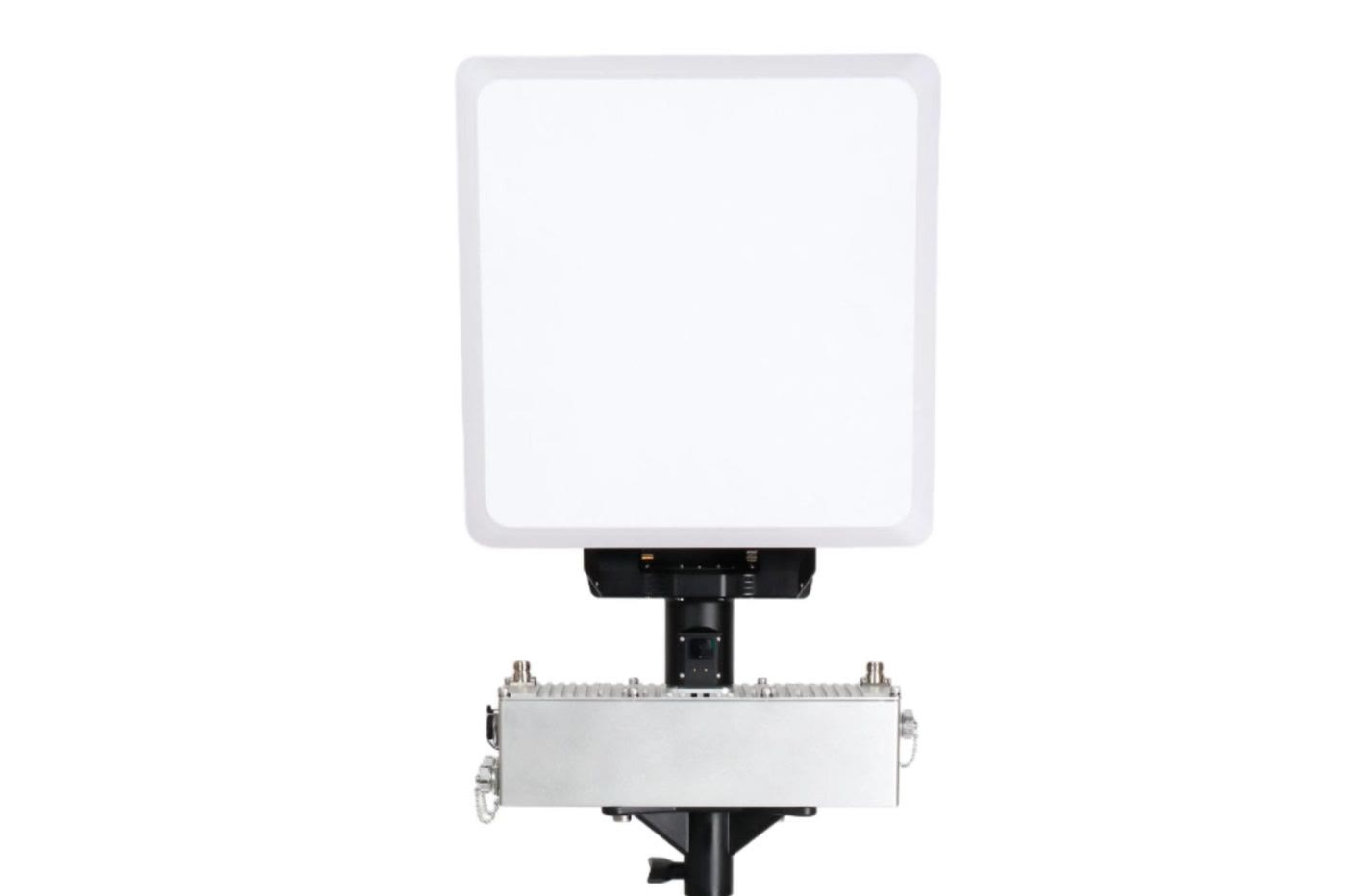

VW-GS-VG03AGround station · Land	Serial, Ethernet×1	Built-in 7800 mAh battery	IP66	349.00112.00102.00mm
VW-GS-VG02AGround station · Land	Serial, Ethernet×1	12V/24V adapter (external supply)	IP66	349.00112.00102.00mm
VW-GS-VYJDB02Ground station · Land	Serial, Ethernet×1	Built-in 7800 mAh battery	IP66	225187.745mm

05/05

Sealed short-range links for wet, salty and corrosive duty.

3models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands

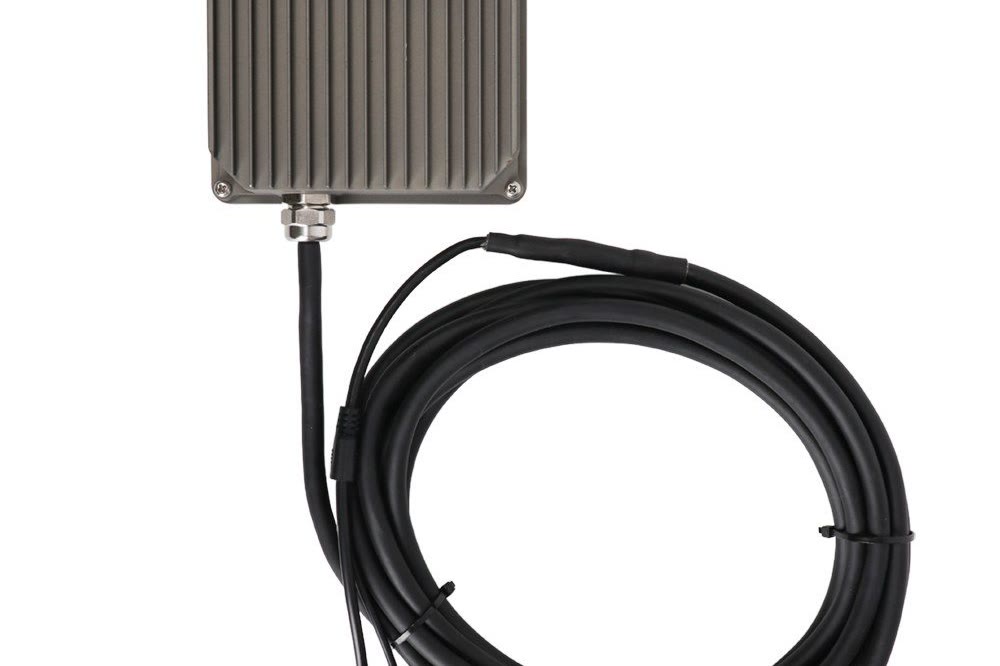

VW-WP-1Waterproof · Sea	1km	30Mbps	150ms	2.4GHz, 1.4GHz, 800MHz
VW-WP-2Waterproof · Sea	2km	30Mbps	150ms	1.4GHz, 800MHz
VW-WP-5Waterproof · Sea	5km	30Mbps	150ms	1.4GHz, 800MHz
