UAV Data Link Products

Published data-link models. Every range figure is a line-of-sight reference value.

31 models · 5 families

CategoryRangeFrequency bandThroughput

Airborne Data Link

Full-interface modules for the airframe — range, weight and power in every class.

15 models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands	Actions
VW-J30-15 — Airborne Data Link (15 km)J30Air	15 km	30 Mbps	150 ms	2.4GHz, 1.4GHz, 800MHz	Compare
VW-MICRO-15 — Airborne Data Link (15 km)MicroAir	15 km	30 Mbps	150 ms	2.4GHz, 1.4GHz, 800MHz	Compare
VW-STD-15 — Airborne Data Link (15 km)StandardAir	15 km	30 Mbps	150 ms	2.4GHz, 1.4GHz, 800MHz	Compare
VW-FH-15 — Airborne Data Link (15 km)FrequencyHoppingAir	15 km	30 Mbps	150 ms	1.4GHz-1.5GHz	Compare
VW-J30-50 — Airborne Data Link (50 km)J30Air	50 km	30 Mbps	150 ms	2.4GHz, 1.4GHz, 800MHz	Compare
VW-STD-50 — Airborne Data Link (50 km)StandardAir	50 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare
VW-FH-30 — Airborne Data Link (30 km)FrequencyHoppingAir	30 km	24 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare
VW-FH-50 — Airborne Data Link (50 km)FrequencyHoppingAir	50 km	24 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare
VW-FH-50P — Airborne Data Link (50 km)FrequencyHoppingAir	50 km	40 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare
VW-J30-80 — Airborne Data Link (80 km)J30Air	80 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare
VW-FH-100 — Airborne Data Link (100 km)FrequencyHoppingAir	100 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare
VW-J30-150 — Airborne Data Link (150 km)J30Air	150 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare
VW-J30-150P — Airborne Data Link (150 km)J30Air	150 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare
VW-FH-200 — Airborne Data Link (200 km)FrequencyHoppingAir	200 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare
VW-FH-300 — Airborne Data Link (300 km)FrequencyHoppingAir	300 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	Compare

VW-J30-15 — Airborne Data Link (15 km)
J30 · Air
Range (LOS)
15 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-MICRO-15 — Airborne Data Link (15 km)
Micro · Air
Range (LOS)
15 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2
VW-STD-15 — Airborne Data Link (15 km)
Standard · Air
Range (LOS)
15 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, TTL/UART
VW-FH-15 — Airborne Data Link (15 km)
FrequencyHopping · Air
Range (LOS)
15 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-J30-50 — Airborne Data Link (50 km)
J30 · Air
Range (LOS)
50 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-STD-50 — Airborne Data Link (50 km)
Standard · Air
Range (LOS)
50 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, TTL/UART
VW-FH-30 — Airborne Data Link (30 km)
FrequencyHopping · Air
Range (LOS)
30 km
Peak throughput
24 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-FH-50 — Airborne Data Link (50 km)
FrequencyHopping · Air
Range (LOS)
50 km
Peak throughput
24 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-FH-50P — Airborne Data Link (50 km)
FrequencyHopping · Air
Range (LOS)
50 km
Peak throughput
40 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-J30-80 — Airborne Data Link (80 km)
J30 · Air
Range (LOS)
80 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-FH-100 — Airborne Data Link (100 km)
FrequencyHopping · Air
Range (LOS)
100 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-J30-150 — Airborne Data Link (150 km)
J30 · Air
Range (LOS)
150 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-J30-150P — Airborne Data Link (150 km)
J30 · Air
Range (LOS)
150 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-FH-200 — Airborne Data Link (200 km)
FrequencyHopping · Air
Range (LOS)
200 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-FH-300 — Airborne Data Link (300 km)
FrequencyHopping · Air
Range (LOS)
300 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS

IP Mesh Radio

Self-forming IP networks — 10 to 300 km per hop, up to 64 nodes.

7 models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands	Nodes	Actions
VW-MESH-10 — IP Mesh Radio (10 km)MeshAir	10 km	30 Mbps	150 ms	1.4-1.5GHz	up to 32	Compare
VW-MESH-30 — IP Mesh Radio (30 km)MeshAir	30 km	40 Mbps	150 ms	1350-1450MHz (customizable)	—	Compare
VW-MESH-50 — IP Mesh Radio (50 km)MeshAir	50 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64	Compare
VW-DUAL-100 — IP Mesh Radio (100 km)MeshAir	100 km	34 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	—	Compare
VW-MESH-100 — IP Mesh Radio (100 km)MeshAir	100 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64	Compare
VW-MESH-200 — IP Mesh Radio (200 km)MeshAir	200 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64	Compare
VW-MESH-300 — IP Mesh Radio (300 km)MeshAir	300 km	47 Mbps	150 ms	635-675MHz, 800-830MHz, 1300-1400MHz, 1350-1450MHz, 1710-1785MHz	up to 64	Compare

VW-MESH-10 — IP Mesh Radio (10 km)
Mesh · Air
Range (LOS)
10 km
Peak throughput
30 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS, RS-422
VW-MESH-30 — IP Mesh Radio (30 km)
Mesh · Air
Range (LOS)
30 km
Peak throughput
40 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-MESH-50 — IP Mesh Radio (50 km)
Mesh · Air
Range (LOS)
50 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-DUAL-100 — IP Mesh Radio (100 km)
Mesh · Air
Range (LOS)
100 km
Peak throughput
34 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART
VW-MESH-100 — IP Mesh Radio (100 km)
Mesh · Air
Range (LOS)
100 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-MESH-200 — IP Mesh Radio (200 km)
Mesh · Air
Range (LOS)
200 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS
VW-MESH-300 — IP Mesh Radio (300 km)
Mesh · Air
Range (LOS)
300 km
Peak throughput
47 Mbps
Interfaces
Ethernet×1, RS-232, TTL/UART, SBUS

Video Data Link

High-bitrate COFDM video from camera to ground, on one link.

3 models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands	Actions
VW-4K-20 — Video Data Link (20 km)4KHDAir	20 km	80 Mbps	150 ms	1.4GHz-1.5GHz	Compare
VW-4K-50 — Video Data Link (50 km)4KHDAir	50 km	80 Mbps	150 ms	1.4GHz-1.5GHz	Compare
VW-4K-150 — Video Data Link (150 km)4KHDAir	150 km	80 Mbps	150 ms	1.4GHz-1.5GHz	Compare

VW-4K-20 — Video Data Link (20 km)
4KHD · Air
Range (LOS)
20 km
Peak throughput
80 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS
VW-4K-50 — Video Data Link (50 km)
4KHD · Air
Range (LOS)
50 km
Peak throughput
80 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS
VW-4K-150 — Video Data Link (150 km)
4KHD · Air
Range (LOS)
150 km
Peak throughput
80 Mbps
Interfaces
Ethernet×2, RS-232, TTL/UART, SBUS

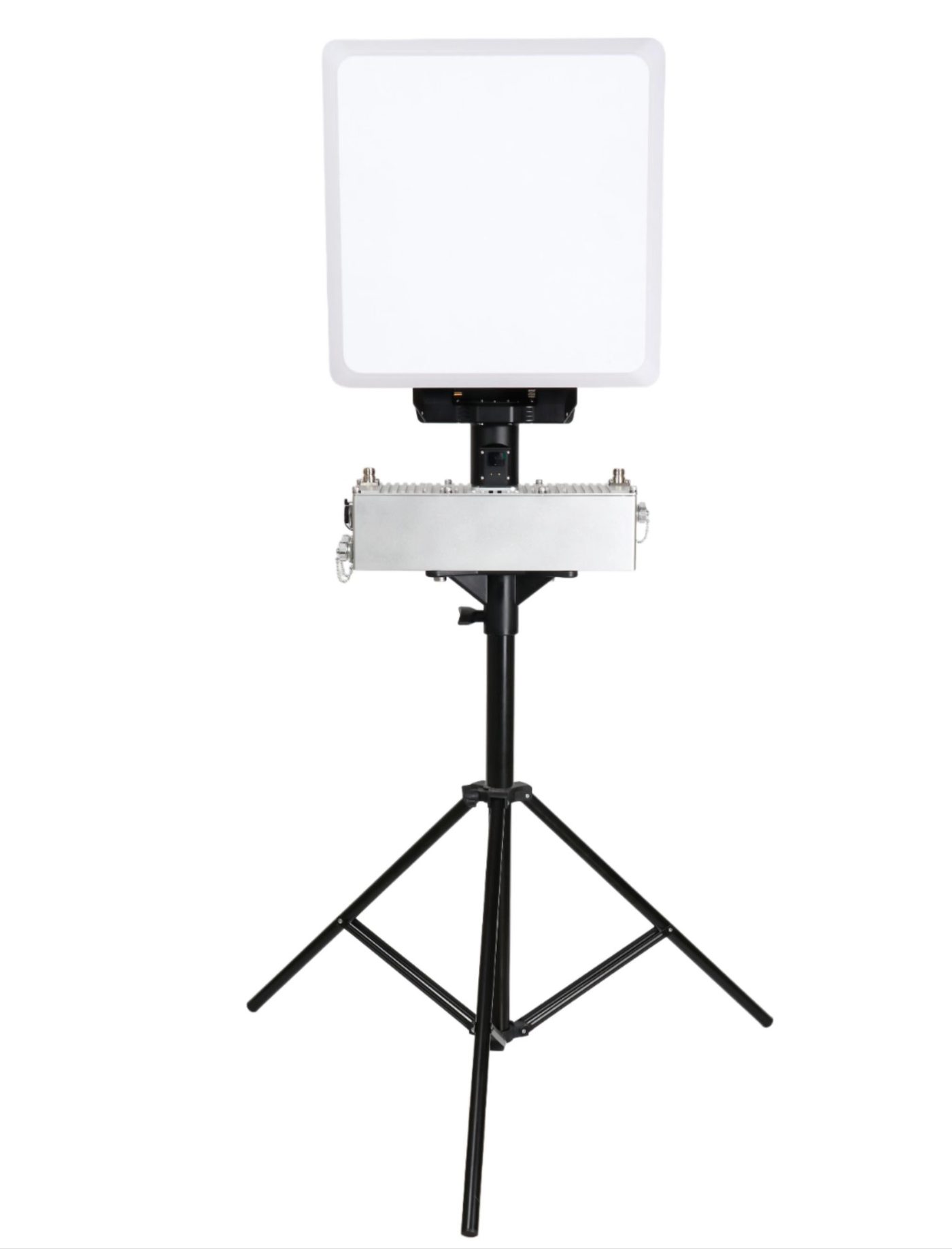

Ground Station

Tracking ground stations that pair with the airborne units.

3 models

Model	Interfaces	Supply voltage	Ingress protection	Dimensions	Actions
VW-GS-VG03A — Ground StationGroundStationLand	Serial, Ethernet×1	Built-in 7800 mAh battery	IP66	349.00112.00102.00mm	Compare
VW-GS-VG02A — Ground StationGroundStationLand	Serial, Ethernet×1	12V/24V adapter (external supply)	IP66	349.00112.00102.00mm	Compare
VW-GS-VYJDB02 — Ground StationGroundStationLand	Serial, Ethernet×1	Built-in 7800 mAh battery	IP66	225187.745mm	Compare

VW-GS-VG03A — Ground Station
GroundStation · Land
Range (LOS)
—
Peak throughput
—
Interfaces
Serial, Ethernet×1
VW-GS-VG02A — Ground Station
GroundStation · Land
Range (LOS)
—
Peak throughput
—
Interfaces
Serial, Ethernet×1
VW-GS-VYJDB02 — Ground Station
GroundStation · Land
Range (LOS)
—
Peak throughput
—
Interfaces
Serial, Ethernet×1

Waterproof Data Link

Sealed short-range links for wet, salty and corrosive duty.

3 models

Model	Range (LOS)	Peak throughput	Latency (max)	Frequency bands	Actions
VW-WP-1 — Waterproof Data Link (1 km)WaterproofSea	1 km	30 Mbps	150 ms	2.4GHz, 1.4GHz, 800MHz	Compare
VW-WP-2 — Waterproof Data Link (2 km)WaterproofSea	2 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare
VW-WP-5 — Waterproof Data Link (5 km)WaterproofSea	5 km	30 Mbps	150 ms	1.4GHz, 800MHz	Compare

VW-WP-1 — Waterproof Data Link (1 km)
Waterproof · Sea
Range (LOS)
1 km
Peak throughput
30 Mbps
Interfaces
Ethernet×1
VW-WP-2 — Waterproof Data Link (2 km)
Waterproof · Sea
Range (LOS)
2 km
Peak throughput
30 Mbps
Interfaces
Ethernet×1
VW-WP-5 — Waterproof Data Link (5 km)
Waterproof · Sea
Range (LOS)
5 km
Peak throughput
30 Mbps
Interfaces
Ethernet×1
